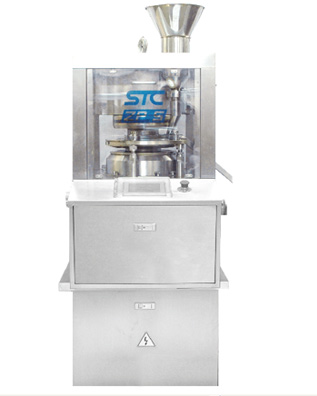

ZP8 INTELLIGENT ROTARY TABLET PRESS
INTRODUCITON:
Model ZP8 rotary tablet press is a type of small size low and capacity machine mainly sutiable for use in Laboratories.
Features:
l Single roller, fully enclosed in compliance with GMP requirements;
l Speed adjustment by means of invertor
l Man-machine interface and user friendly easy to operate;
l Digital display of the main compression, tablet ejection force, thickness of the tablet, fill depth and rotary speed;
l Over load protection for the motor with emergency stop device.
Technical data:
Number of station: 8
Max. main compression: 60Kn
Max. pre-compression: 10kn
Max. dia. of tablet: 22mm
Max. thickness of tablet: 7mm
Max. depth of tablet: 18mm
Rotary speed of the turret: 10~30mm
Max. output : 4800~14400tablet/H
Punch and die type: IPT 1 (EU 1) D
Power of main motor: 1.5Kw
Oversize: 747x800x1560mm
Weight: 500kgs |
