BGB-10F High efficiency film coater
2009-3-26 13:51:22
BGB-10F HIGH-EFFICIENCY FILMCOATING MACHINE
Usage:
The BGB-10F high-efficiency film coating machine is mainly used in pharmaceutical and food industries. Featuring mechatronis and conforming to the requirement of GMP, it is a high-efficiency、energy saving、safe and clean equipment for coating tablets, pills and candies with organic film, water soluble film, slow and controlled release film, sugar film and etc.

Working principle:

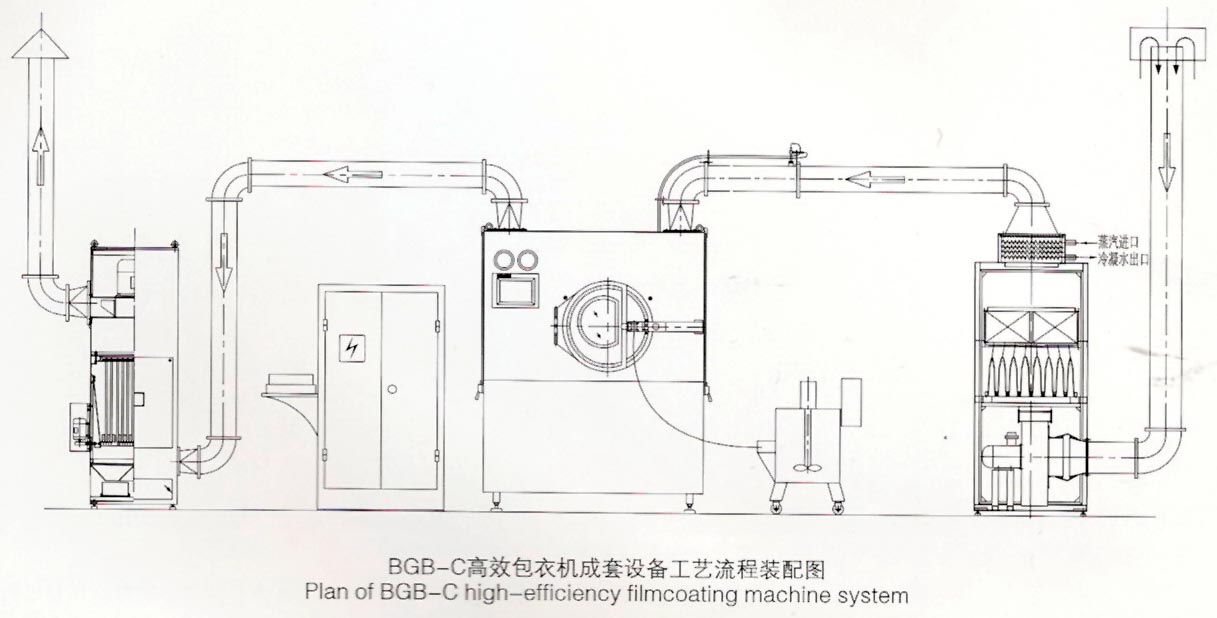

The tablet cores to be filmcoated make continuous complicated orbital motion within the closed rotating drum under the action of a streamline guide plate. During the motion, coating medium automatically sprays according to the technological process and rational technological parameters, at the same time hot air is supplied under a negative pressure. The hot air penetrates through the tablet core layers and is discharged from the bottom of the layers, so that the coating medium sprayed on the surface of table cores will dry rapidly and evenly, thus forming a solid and smooth surface film.

Features
BGB-10F-coating machine in addition to possess all the features and characteristics of C-type machine, but also have the following characteristics:
1. The model is the best model for coating technology exploration in pharmaceutical industry laboratory.
2. Based on the number of coating technology for the replacement of the coating drum
3. Replacement of the coating drum, convenient, fast
4. Main machine and hot air systems are integrated, compact
Main technical parameters:

Model
BGB-10F
Production capacity (kg/run)
10
Three drums for one machine(kg/run)
3、5、10
Diameter of drum(mm)
500、520、610
peed-adjusting range of filmcoating drum (rpm)
6-30
Motor power of main machine(KW)
0.55
Temperature-regulating range of hot air (°C )
Normal temperature~80℃
Motor power of hot air machine(KW)
0.75
Motor power of exhaust machine (KW)
2.2
Motor power of vibration dust-cleaning device(KW)
0.37
Motor power of peristalsis pump(KW)
0.18
Overall dimension of main machine (mm)
970×880×1800
Weight of main machine (kg)
450
