BZ400 wraping
2009-1-15 13:43:28
BZ400 wraping packing machine

Introduction:

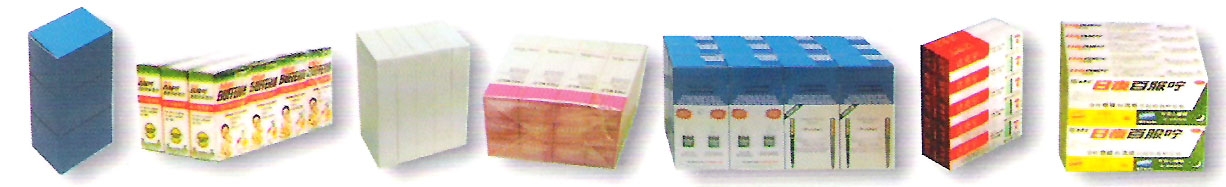

The machine may be applicable to medicine,food, cosmetics and other relevant industries, it can take the amount of your fixing box into six side sealing by using the film. The appearance of packed product is very beautiful. It can provide moistening and reduce the packing cost.

The machine mainly adopts the servo motors as movement parts, PLC controls the machine, it can do procedure in proper is material unrolling, carton feeding, side sealing & cutting and so on. It unifies machine, electricity and air. The structure is simple and
reliable.

The overall design and manufacture process are in auord with the GMP standard

The machine is controlled by PLC.

The operation and controlling is no need expertise and special tools.

The preheating plate of the horizontal sealing station and vertical seating station is feature in even heating and reliable control with only ±2 degree deviation which can be widely used in packing material.

The machine is on and off at any time, the pack and film has no affedt.

There will need no special tools required for replacement on adjusting mould in a shore time .

Easy manual operation on transmission system and other parts with convenient daily maintenance.
Technical data:


Length of carton

20~200mm
Width of carton
12~85mm
Height of carton
50~260mm
Length of stack
50~260mm
Width of stack
25~250mm
Height of stack
50~250mm
Width of material
90~430mm
Length of a piece of material
170~830mm
Inner diameter of material roller
∮70~76mm
Outer diameter of material roller
∮250mm
Speed for single carton
80 stacks/min
Speed for multi carton
30 stacks/min
Air consumption
25l/min
Total power
15kw
Weight of machine
1800kgs
Dimesnion of machine
2300~2820 X 1410mmX1600mm
