HJ 100 Automatic Carton-Packing Machine
Introduciton:
HJ 100is automatic balcony-style packing machine in intermittent movement. This machine inspected by photoelectric switches is controlled by PLC programs to realize each function in accordance with assurance of the quality of products. The machine mainly consists of the major parts :paper-folding machine f(folding manuals ) and carton packing machine. The paper-folding machine folds the manual and the transports it to the bord-pushing spot and the to put them together into the carton. The carton packing machine can automatically take cartons , arrange the boards , print the batch number, seal and transport the carton and finally put out the ready products.
This manhine adopted PLC controlling system , by man –computer operation, which meets the standard of GMP . the max speed can produce 120 cartons per minute. The machine can be used in the connection with aluminium=-plastic packing machine . the machine can automtically and orderly arrange the boards cut and pushed from the aluminium- plastic packing machine to pack .
Main technical data
Packing capability 50-120 packs/minute: 1-6 boards /carton
Power source 380v 50hz 5 three-phaxe line system
Total power 4.5KW
Gross weight about 2400kg
Gas wastage 50L/minute (0.5Mpa)

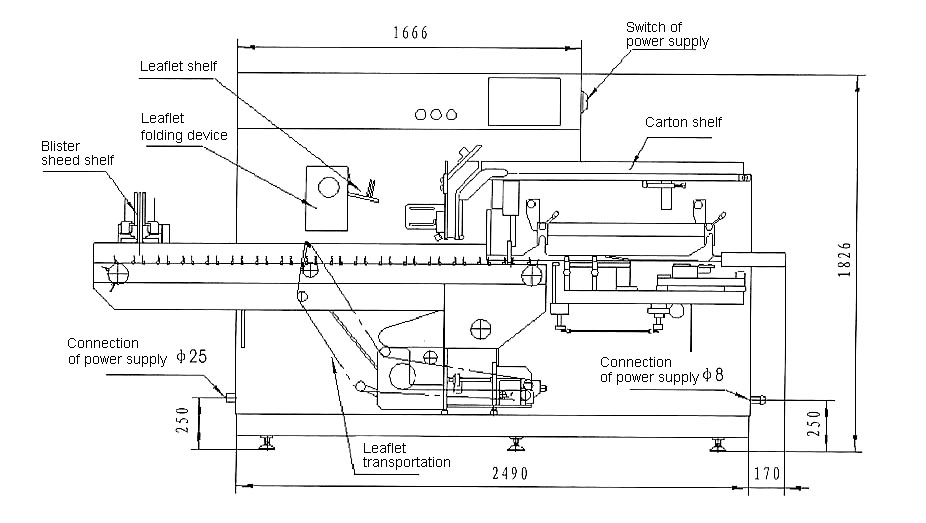

Dimension(LXWXH) 3400mm×1300mm×1830mm
Tab(manual)standard 40-70 gram/spuare meter
Maximum 300mm×210mm minimum 80mm×100mm
Carton standard 250-350 gram /spuare meter
L =85-130mm
W=40-80mm
H=12-80mm
Packing(board)standard
L=65-120mm
W=25-80mm |
