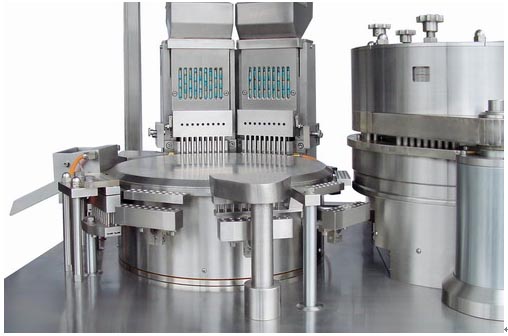

NJPC 2000 AUTOMATIC CAPSULE FILLING MACHINE
Structure features and technology
Close full automatic capsule filling machine,compared with current other kinds of filling machies in this field at home,its features and technology as following:
It adopts full close design,all parts of the machine are made of Stainless Steel304 with premium quality for capsule,and it has resolved the difficulty of dismantling,complicated equipping die as well as its precision for equipping die.
It adopts the design with cam down,and equipped with pressure atomized oil pump,make trough of cam lubricated fully,lessen abrasion;delay its life.
Bigger design,improve the powdered substance flowing evenly,more precision for filling.
It adopts larger cam mechanism to make die chassis as well as the whole machine work in the balance,keep the machine operating stably g filling precisely.
It adopts capsule vacuum positioned mechanism,to make the capsule qualified over99%.

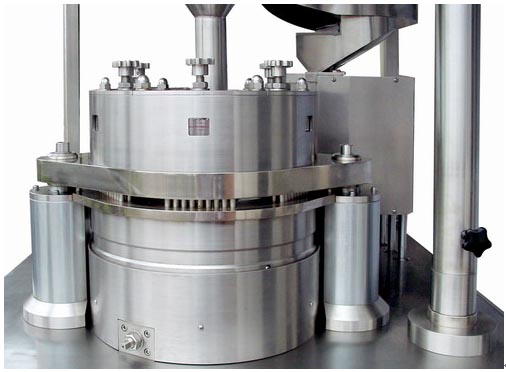

It adopts double bearing frame and in clined dosage plate to adjust,make it more stable and precise.
Improve the powder-ba cking device,reduce the resistance of powder substance flowing.Improve its density and homogeneity.
Difference of device is reduced from ±5% to ±3.5% ofNational standard.
Replace previous frequency and Hz of exchange,it adopts display mechanism for every minute,it belongs to the leading position in this same field currently.
It adopts man-machine interfa ce intelligent operation,carrying out computer full automatic control,connections with hunman operation of computer.
Technica data:
Output：2000 granule/min
No.of segment bores：18
Suitable for capsule：00#-4#
Total power：8kw
Overall weight：1000kg
Overall dimensions：1100×1300×1800
Working normally，safety and stability.
Capsule making rate：≥99%precise dosage
Frequency governor，controllable program-control
New closed structure，accord with printing requirement
NJP Series Automatic Capsule Filling machine Material Qualified Testify
1. Filling machine panel: 35# steel including 304 stainless steel outer garment.
2. Transmission parts Cam: 40C steel, the surface should be treated by Nitrogen, the depth 0.4~0.5mm, HRC 55~60.
3. Slot Cam, Plane Slot Cam: 38CrMoAl steel, the surface should be treated by Nitrogen, the depth 0.4~0.5mm, HRC 55~60.
4. Guide Pillar: GCr15 High frequencty hire, the depth 0.7~1mm, HRC55~60. After polished, the surface should be plated to Chromium, then to be polished again.
5. Guide Rod: 20Cr Mn Ti, the surface should be treated by Carbon, the depth 0.7~1m, HRC55~60.
6. The parts touched directly the powder:
1) Dose pan:SS316L
2) Filling plunger:SS316L
3) Upper and lower Mold: SS316L
4) Hopper: SS304
5) Seal ring and so on: SS316L |
