GZPT Series of High Speed Rotary Tablet Press Machine
PRECIOUS TABLET WEIGHT CONTROLLING SYSTEM
There provides high accuracy micro pressure train trasducer and high gain, low noise amplifier with function of temperature compensation & self testing, which make precious, reliable tablet pressing pressure tet; special-purpose industrial controlling hardware computer system and scientifice, useful controlling software, advanced man-machine interactive method and sealed computer box, consists of advanced, reliable, convenient operation tablet weight controllingsystem, and can reject a bulk of, or singel tablet.
RELIABLE ELECTRIC CONTROLLING SYSTEM
Advanced control theory and reliable imported electrical parts make overall pragram’s controlling and chained protection function come true praciously.

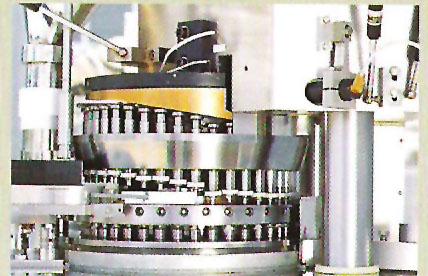

PERECT TABLET PRESSING SYSTEM
Double forming, narrow intervene, big pressing wheel an frame construction design make the machine owning the ability of underformation under the pressure, long time pressed tablet and stable working operation. Which guaranttees tablet weight accuracy and tablet hardness in pressing large tablet, also the machine’s operation is very stable and with low noise.

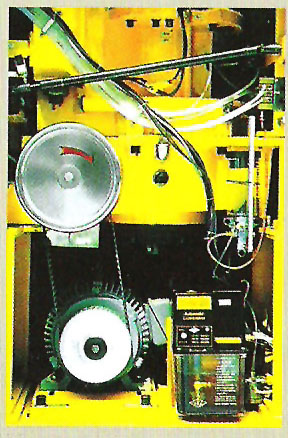

CENTRAL LUBRICATION SYSTEM
There are intermittent micro flowerily automatical pressure lubrication system, also provide high precision micro distributing valve and central lubrication pump. Which guarantee punch and conveyor’s full lubrication, furthermore solve the problem of oil linkage to pullute tablet. Progressive semi-automatically cnetral lubrication system guarantee lubrication system’s clearness, easy and reliability.
DESIGN OF GMP
Totally meet the GMP standard;
360°panornam for easy observing and cleaning;
Without painting and galvanic process to tablet pressing cellato outlet;
Stainless steel to parts touching powder;
There are special oil-proof & dust-proof sealing device;
Easy removal design for easy machine’s maintenance;
Visibility unlimited isolated window and door;
Reliable sealing system and dust-proof system.
Technical Data:
|
Model |
GZPT-26 |
GZPT-32 |
GZPT40 |
|
Station |
26 |
32 |
40 |
|
Max. dia. of tablet |
25 |
16 |
13 |
|
Output (tablet/H) |
170000 |
210000 |
260000 |
|
Max. filling Detpt (mm) |
20 |
18 |
18 |
|
Max. compaction (Kn) |
100 |
80 |
80 |
|
Max. pre-pressure(Kn) |
20 |
20 |
20 |
|
Power (Kw) |
7.5 |
7.5 |
7.5 |
|
Dimension |
1120x930x1900 |
1120x930x1900 |
1120x930x1900 |
|
Weight (kg) |
1650 |
1650 |
1650 | |
