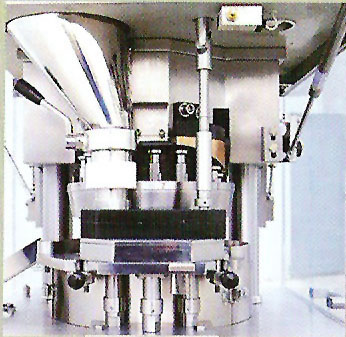

ZPT Series of Rotary Tablet Press Machine
DESIGN OF GMP
Totally meet the GMP standard;
360°panornam for easy observing and cleaning;
Without painting and galvanic process to tablet pressing cellato outlet;
Stainless steel to parts touching powder;
There are special oil-proof & dust-proof sealing device;
Easy removal design for easy machine’s maintenance;
Visibility unlimited isolated window and door;
Reliable sealing system and dust-proof system.
PRECIOUS TABLET WEIGHT CONTROLLING SYSTEM
Matched with scientific, useful controlling software, advacned man-machine interactive method consists of advanced , reliable, convenient operation tablet weight operated controlling system, and can reject a bulkd of.
RELIABLE ELECTRIC CONTROLLING SYSTEM
Advanced control theory and reliable imported electrical parts make overall pragram’s controlling and chained protection function come true praciously.
REINFORCED SYSTEM
Made the main enigne’s motive power directly tansmit to reinforted trransmission shoft. Passing transmission casket and feeding in raw materials impeller allomplish reinforece system, solved insufficiency raw materials. too much powder in working tray and intersect pollution of compressor machine’s gravity.
Technical Data:
|
Model |
ZPT-15 |
ZPT-17 |
ZPT-20 |
|
Station |
15 |
17 |
20 |
|
Max. dia. of tablet |
20 |
16 |
12 |
|
Output (tablet/H) |
70000 |
80000 |
95000 |
|
Max. filling Detpt (mm) |
20 |
16 |
16 |
|
Max. compaction (Kn) |
100 |
80 |
80 |
|
Max. pre-pressure(Kn) |
12 |
12 |
12 |
|
Power (Kw) |
3 |
3 |
3 |
|
Dimension |
760x640x1540 |
760x640x1540 |
760x640x1540 |
|
Weight (kg) |
675 |
675 |
675 | |
