MPFS Plastic Ampoule production Line
2009-2-3 13:40:35

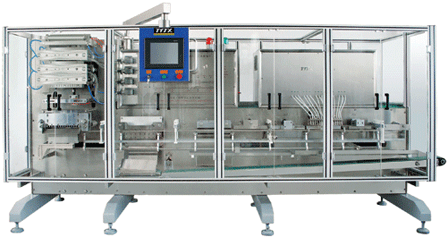

MPFS Plastic Ampoule Filling and Sealing Packing Machine

Introduction:

The machine is controlled by the touch screen HMI, with photo electricity detection and trouble display, in accordance with GMP.

The frame and outside use best quality SS, stable , best craftwork, with nice rust proof and accord with GMP.

High efficient , cutting rate 10-18 plate/min, reach the overseas level.

User can choose mechanism and electronic filling , we suggest the latter.
Stepless frequency converter, width speed adjustment, stable transmission.

Easy move the mould , easy repair and clean
All 22 processes from spreading roll, ampoule bottle forming, filling, sealing the end, printing serial numbers, cutting the end, cutting apart, controlled by programming.
Controlled by PLC, the stepless frequency conversion variable speeds.
The large display computer human interface has simple and clear operation.
Main components are imported.
The filling head does not drop, leak, rise in bubbles and spill over.
Made of high quality stainless steel, accord with the standard GMP.

Technical data:
Model
PFS
Max.forming depth
10mm
Cutting frequency
10~18times/min
Packing speed
10~18 sheets/min; 8~15pcs/sheet
Dimension of sheet
Max. legth: 315mm; Max. width 78~108mm
Packing material
PVC/PE 0.3~345mm
Capacity
5~25ml/sheet;
Air consumption
110L/min
Water consumption
6L/min
Power
12kw
Electriciy supply
380V 50Hz
Overall size
3880x1783x1920mm
Weight
3400kgs
